The btc4/0-10 stands out as a key tool in electrical work. Electricians use it to connect wires without stripping insulation. This saves time and cuts risks. Made by Buchanan, now part of Ideal Electrical, it handles tough jobs well. In this article, we dive into its background, features, and uses. You’ll see why pros pick it for reliable taps.
What Is an Insulation Piercing Connector?
Insulation piercing connectors let you join wires fast. They pierce through the outer layer to touch the metal inside. No need to cut or strip. This keeps things safe and quick.
These connectors started in the 1970s. Early ones needed stripping, but problems like corrosion pushed changes. By the 1990s, better designs came out. They used sharp teeth and seals to fight water and rust.
In Europe, they caught on for medium voltage lines over a decade ago. In the US, adoption grew slower. Now, they’re common in low voltage setups like homes and buildings.
The tech draws from old ideas like wire-wrap from Bell Labs. Western Electric helped pioneer it. Today, they work in telecom, power lines, and more.
The History Behind Buchanan Electrical Products
Buchanan began making connectors and controls years ago. In 1990, Ideal Industries bought them. Ideal started in 1916 with wire nuts. They grew to offer tools and connectors worldwide.
Buchanan focused on construction products. Their relays and terminals helped in industry. After the buyout, their line joined Ideal’s. This made strong items like the btc4/0-10.
James Buchanan Duke, though not directly linked, shaped power history. He built Duke Power in 1905. It supplied mills and grew big. But Buchanan the brand ties more to construction tools.
Today, Buchanan products under Ideal meet high standards. They test for safety and last long. For business news on such firms, check Biz Reporterz.
Key Specifications of the BTC4/0-10
The btc4/0-10 fits specific wires. Here’s what you need to know:
- Wire Sizes: Run wire from 4/0 to 3 AWG. Tap wire from 2 to 10 AWG for copper solid or stranded. For aluminum, tap from 8 to 2 AWG stranded.
- Voltage Rating: Up to 600 volts.
- Temperature Rating: Works at 90°C or 194°F.
- Torque: 125 inch-pounds. The nut breaks away at this point.

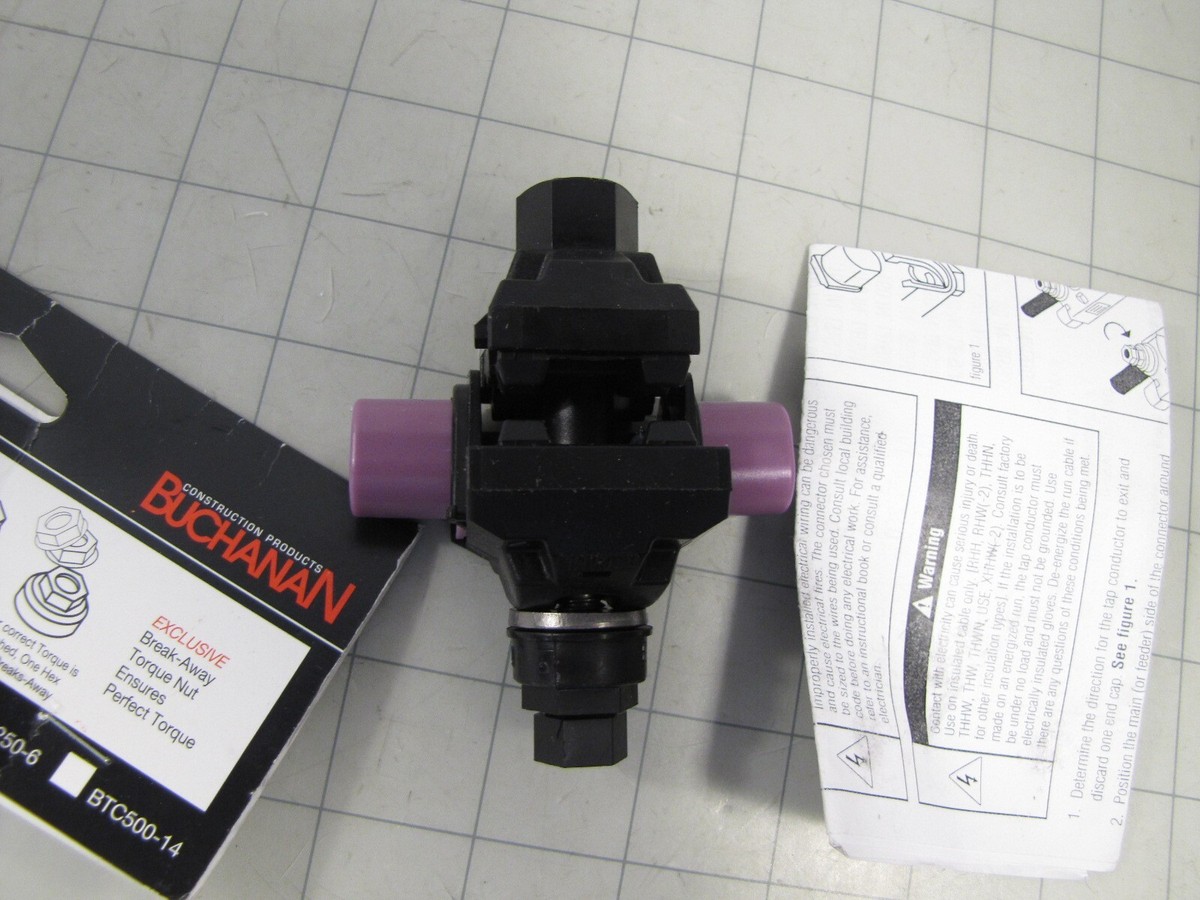

- Materials: Hardened copper teeth pierce insulation. Rubber caps and boots seal against water. Self-insulated black housing.
- Approvals: UL listed, CSA certified, RoHS compliant.
- Dimensions: About 1.8 inches wide. Compact for tight spots.
- Wire Types: Handles copper to copper, aluminum to aluminum, or mixed.
It’s dual-rated for copper and aluminum. This makes it versatile. Price sits around $24.56 per unit, based on suppliers.
Stats show these save 60% on install costs over split bolts. They cut downtime too, since you install on live wires.
How to Install the BTC4/0-10
Installing the btc4/0-10 is simple. Follow these steps for a safe connection:
- Pick the Tap Direction: Decide where the tap wire exits. Remove one end cap from that side.
- Place on Main Wire: Put the main side around the feeder wire. Make sure it sits firm.
- Insert Tap Wire: Push the tap wire into the tap side. Go until it hits the other end cap.
- Tighten the Nut: Use a box, socket, or impact wrench. Turn until the torque nut snaps off. This hits the right torque without a special tool.
- Check the Seal: Ensure caps cover ends. Grease inside fights corrosion.
You can do this on energized systems. No power cut needed. Always wear gloves and follow codes. If unsure, consult a pro.
One example: In a remodel, an electrician used it for quick lighting adds. No outages for the building.
Applications for the BTC4/0-10
The btc4/0-10 shines in many spots. Pros use it for:
- Temporary Circuits: Set up fast power for events or tests.
- Emergency Repairs: Fix lines quick without full shutdowns.
- Remodeling: Add branches in homes or offices.
- Maintenance: Tap into lines for checks or upgrades.
- Overhead Services: Connect street lights or utilities.
It’s great for low voltage distribution. In spacer cable or tree wire setups, it seals well against weather.
One case: Utility crews in Europe used similar IPCs for MV lines. They cut install time by 70%. In the US, it’s growing for similar jobs.
Avoid tension applications. It’s for non-tension taps only.
Benefits of Using the BTC4/0-10
Why choose the btc4/0-10? It offers big wins:
- Safety First: No exposed wires reduce shock risks.
- Time Saver: Installs in two minutes. No tape or stripping.
- Cost Effective: Saves 60% over old methods like split bolts.
- Durable: Grease and seals fight water, rust, and arcing.
- Easy Removal: Second nut lets you take it off later.
Studies show IPCs last longer in wet areas. Their design keeps connections strong.
Compared to crimp connectors, no special tools needed. Vs. wire nuts, better for larger wires.
Comparisons with Other Connectors
How does the btc4/0-10 stack up?
- Vs. Split Bolts: Faster install, no tape. Saves money and time.
- Vs. Standard IDC: Handles bigger wires, power ratings higher.
- Vs. NSI IPCS4002: Similar sizes, but btc4/0-10 has breakaway nut for sure torque.
- Vs. Ilsco IPC-4/0-6: Close specs, but Buchanan’s grease seals better.
In tests, Buchanan models showed less corrosion over time.
For alternatives, see Gordon Electric Supply for subs.
Tips for Working with Insulation Piercing Connectors
Here are helpful tips:
- Check Wire Sizes: Match run and tap to specs.
- Use Right Tools: Standard wrench works fine.
- Inspect Before Use: Look for damage on connector.
- Follow Codes: UL and CSA mean it’s safe, but local rules apply.
- Store Properly: Keep dry to protect grease.
Quote from an electrician: “These make jobs quicker and safer. No more guessing torque.”
FAQs About the BTC4/0-10
What wires does the btc4/0-10 work with?
It takes run wires 4/0 to 3 AWG and tap 2 to 10 AWG copper or aluminum.
Can I install the btc4/0-10 on live wires?
Yes, it’s safe for energized systems.
How much torque for the btc4/0-10?
125 inch-pounds. The nut breaks away at that.
Where to buy the btc4/0-10?
Try MC-MC or Ideal Industries.
Is the btc4/0-10 waterproof?
Grease-filled caps make it resistant to water and corrosion.
Conclusion
The btc4/0-10 brings reliability to electrical taps. Its breakaway nut, seals, and easy install make it a pro favorite. From repairs to new setups, it saves time and boosts safety. With Buchanan’s backing and Ideal’s quality, it’s built to last.
Have you used the btc4/0-10 in a project? Share your tips below!
